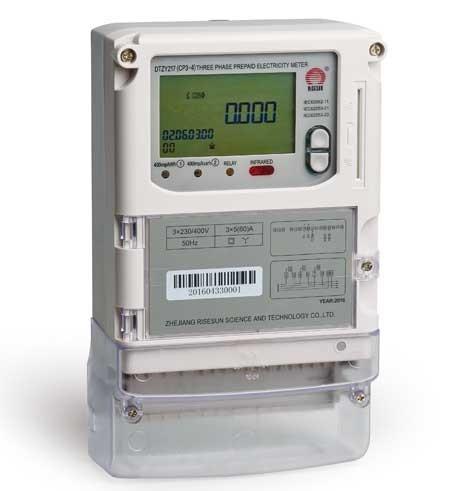

Three Phase Four Wire CPU Card Prepaid Electronic Meter
Product Standards
IEC62052-11, IEC62053-21, IEC62055-31, IEC62055-41, IEC62055-51
General Introduction
Three Phase Four Wire CPU Card Prepaid Electronic Meter is a TOU
prepayment energy meter. The main functions of the meter are
metering active energy, measuring instantaneous quantity, maximum
demand, recording data of freeze, current loss, broken phase, meter
cover open, overpower alarm, IC card reading/writing, energy charge
balance alarm, energy balance credit and etc.it has multiple
optional functions which can be optional through configure table as
per requirements.
Technical Parameters
| Items | Contents |
| Standards | IEC62052-11, IEC62053-21, IEC62055-31, IEC62055-41, IEC62055-51 |
| Accuracy | Active: Class 1 |
| Communication protocol | DL/T 645-2007 |
| Reference voltage | 120V/220V/230V/240V |
| Current | 5(60)A 10(100)A |
| Reference frequency | 50/60 Hz |
| Power consumption | ＜1.5W, 6VA |
| Operation voltage range | 0.8Un～ 1.2Un |
| Limited operation voltage range | 0.7Un～ 1.3Un |
| Operation temperature | -25℃～ +60℃ |
| Limited operation temperature | -40℃～ +70℃ |
| RTC deviation | ≤0.5s/ d |
| Life time | 15 years |
| Size | 160mm(L)×112mm(W)×71mm(H) |
| Net weight | About 0.6kg |
Main functions
● With the export energy metered as total import energy, and
capable of recording export energy alone.
● Prepayment CPU card, higher security and reliability.
● TOU
Four tariffs; two sets of time zone tables; two sets of time period
tables; support public holidays and weekends
● Step tariffs
● Friendly power supply management
Support emergency credit
● Events logs
Detecting and recording events such as current reverse, magnetic
influence, phase bypass, meter cover open, terminal cover open,
overvoltage, under voltage, etc.
● Anti-tamper
Detecting current reverse, magnetic influence, phase bypass, meter
cover open, at the same time, the meter can disconnect power supply
which is configurable when the tampers occur.
● Audio and visual alarm
Audio and visual alarm which can be configured for current reverse,
magnetic influence, phase bypass, meter cover open, etc.
● Load control
Detecting the customer’s load status, it can alarm or disconnect
the power supply when under overload.
● Communication interface
One far infrared interface and one RS485 are available.
Our advantage
Production Workshop
Production management: Risesun owns several inteligent production
lines,is equipped with complete high-grade, precision and advanced
calibrating and testing equipment, forms Three-in-one Management
System of ISO9001:2008, ISO14001:2004,OHSAS18001:2007 as its
Quality Control Standards,and carries out the scientific quality
management for product design and development,supplier material
evaluation and review, production process control, product
ex-factory acceptance, after-sales service, etc. to make sure that
the production quantities of intelligent energy meters, charging
piles and metering boxes are more than 20,000pcs per day.
Marketing Network
Risesun has formally carried out the globalization management
strategy. Its sales turnover has increased steadily year by year,
with sales reaching 3 billion yuan in the past three years. Its
products and solutions have already been successfully applied in a
number of countries and regions like Nepal, Vietnam, Pakistan,
India, Bangladesh, Philippines, Peru, Cuba, Columbia, Ecuador,
Brazil, Zimbabwe, Tanzania, Ethiopia, Russia and etc., and have
obtained the unanimous praises from customers. A main source of its
sales revenues in the future will be from the international trade
business.
